145SCYT

Product advantages and features:

1.Convenient operation and maintenance: The degree of automation is high, and the operator does not need to undergo long-term training, and unattended operation can be achieved;

2. Good power balance: There is no unbalanced inertial force, it can operate smoothly at high speed, and can achieve foundation less operation. It is particularly suitable for use as a mobile compressor, with small size, light weight, and small footprint;

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction

Diesel portable screw air compressor

Diesel portable screw air compressor is widely used in highway, railway, mining,

water conservancy, shipbuilding, urban construction, energy, military industry and other industries.

Parameters

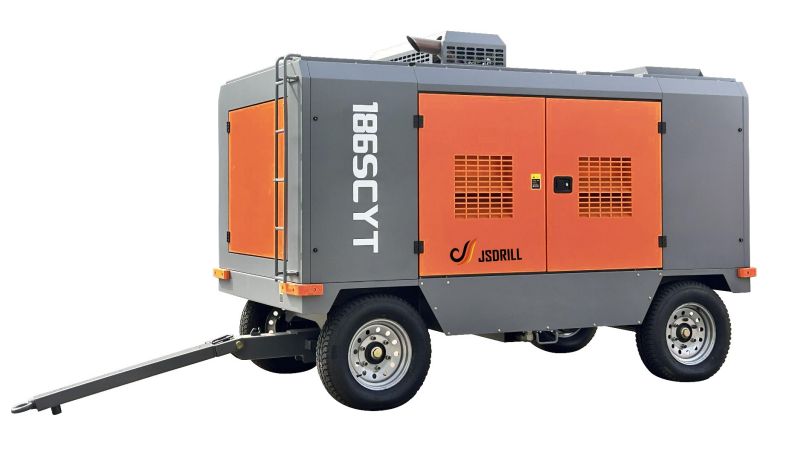

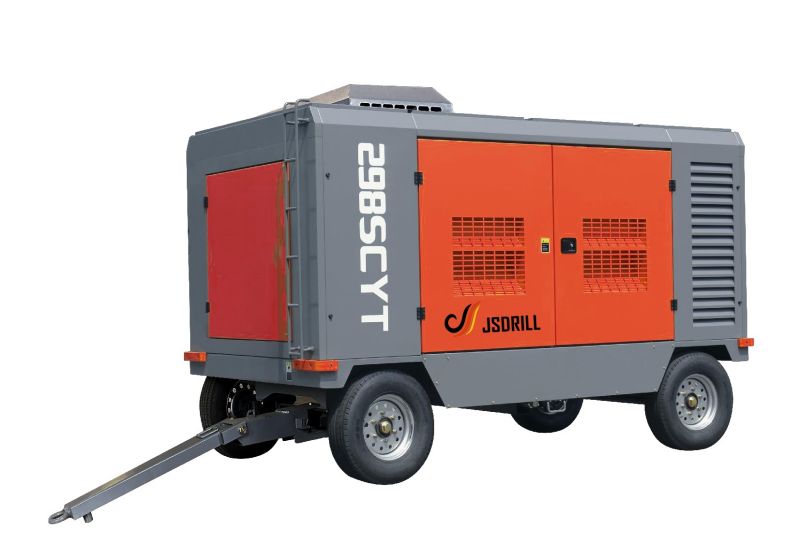

Model	145SCYT -12-18S	162SCYT -18	186SCYT -15-19	198SCYT -18-22	220SCYT -15-18	220SCYT -23	298SCY T-24
China IV engine (standard)	Yuchai /140 kW	Yuchai /162 kW	Yuchai /191 kW	Yuchai /191 kW	Weichai /221 kW	Weichai /221 kW	Yuchai /294 kW
Diesel tank volume	230 L	230 L	345 L	345 L	345 L	345 L	485 L
Rated FAD	17/15 m³/min	17 m³/min	24/20 m³/min	22/18 m³/min	26/24 m³/min	22 m³/min	29 m³/min
Rated Pressure	12/18 bar	18 bar	15/19 bar	18/22 bar	15/18 bar	23 bar	24 bar
Weight	2,980 kg	3,250 kg	3,870 kg	3,900 kg	3,950 kg	4,050 kg	4,800 kg
Type	4 wheel
Dimensions (LxWxH)	3,345×1,750 ×2,460 mm	3,345×1,750 ×2,460 mm	3,900×1,910 ×2,520 mm	3,900×1,910 ×2,520 mm	3,900×1,910 ×2,560 mm	3,900×1,910 ×2,560 mm	4,180×2,080 ×2,995 mm

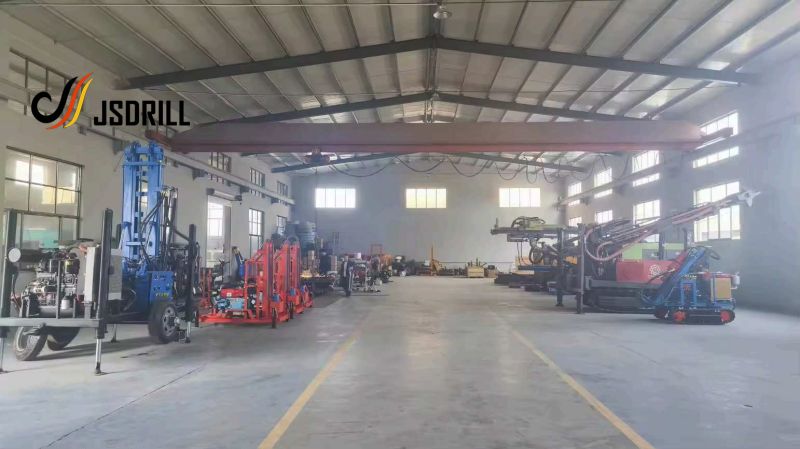

Company

We established in 2 0 1 8 and is located in shandong jining province ,enjoying convenient transportation and beautiful environment.Our company covers an area of 6 0 0 square meters and has 2 0 employees. We are specialized in import and export;technology import and export.Our company has rich experience in the engineering and building materials machinery industry.

The company lies in rencheng city shandong jining province ,with workshop space of 1000 m2 and more than 30 employees.The transportation is very convenient. It professionally produces various DTH hammer, DTH bit, drilling compressor, coupling sleeves,drill pipe for mining and construction. There are more than 300 sales service providers in China, and the products are exported to American,Australia, Africa and Southeast Asia etc. The main brand, "JuSheng", has set up a high reputation and popularity in domestic and foreign market.

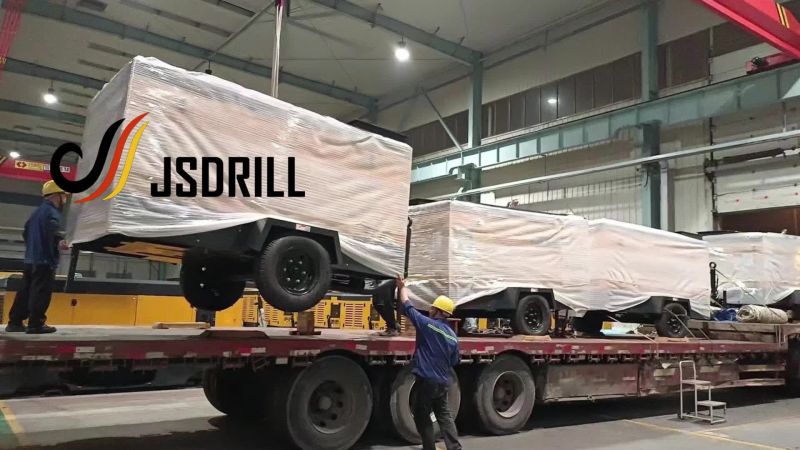

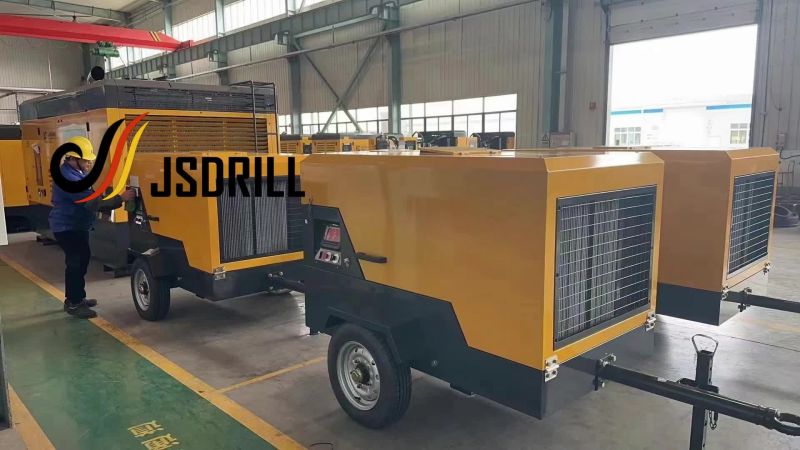

Packaging & Shipping:

Exhibition:

Exhibition

FAQ

1 How about your delivery time?

Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. We have the goods in stock and they will be shipped from the factory within three days. We will book the warehouse after you pay the advance payment.

2 What is the warranty of our machine?

Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.

3 What is your terms of packing?

Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Leave your messages
