22 WSFe-8

◆Stainless steel screw air end, stainless steel system, which can operate stably for a long time and maintain the efficiency after major maintenance;

◆Integrated modular design, no complex pipelines and circuits, less failure points;

◆Ergonomic structure design, simplify installation, more convenient maintenance, reduce maintenance costs.

Contact Now E-Mail Telephone WhatsApp

Product Details

Stainless steel screw air end, stainless steel system, which can operate stably for a long time and maintain the efficiency after major maintenance. Integrated modular design, no complex pipelines and circuits, less failure points. Ergonomic structure design, simplify installation, more convenient maintenance, reduce maintenance costs.

22 WSFe-8

22： Electric motor power 22kW

W: water lubrication

S：Screw

F：Air cool

-8：Rated pressure 8bar

e：Various frequency

no T：单级压缩 / Single-stage compression

22 WSFe-8	Parameter
Electric motor power	Discharge air volume FAD	Work pressure
15-75 kW	1.0-13.0 m³/min	8 bar
Model	Electric motor power	Air discharge capacity FAD	Rated speed	Weight	Dimensions (LxWxH)	Air discharge valve size
15WSFe-8	15 kW	1.0-2.43 m³/min	3000 RPM	670 kg	1370×850×1290 mm	DN20
22WSFe-8	22 kW	1.5-3.7 m³/min	3000 RPM	780 kg	1460×960×1400 mm	DN25
37WSFe-8	37 kW	2.6-6.5 m³/min	3000 RPM	1200 kg	1700×1085×1600 mm	DN32
55WSFe-8	55 kW	4.2-10.3 m³/min	3000 RPM	1570 kg	2140×1300×1800 mm	DN50
75WSFe-8	75 kW	5.2-13 m³/min	3000 RPM	1750 kg	2240×1300×1800 mm	DN50

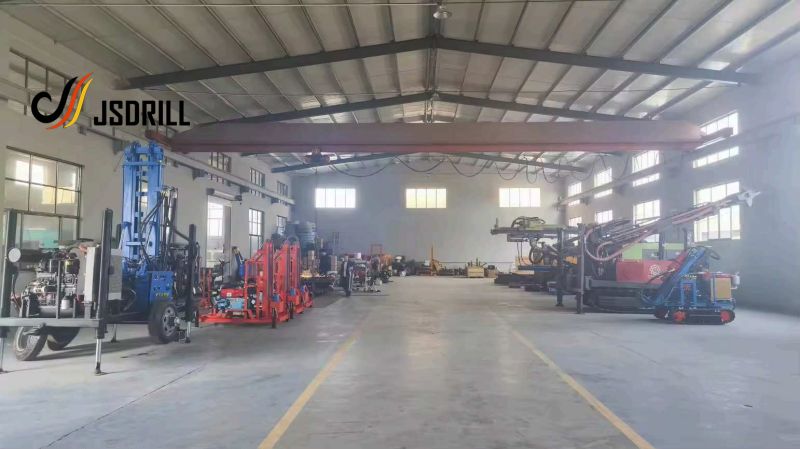

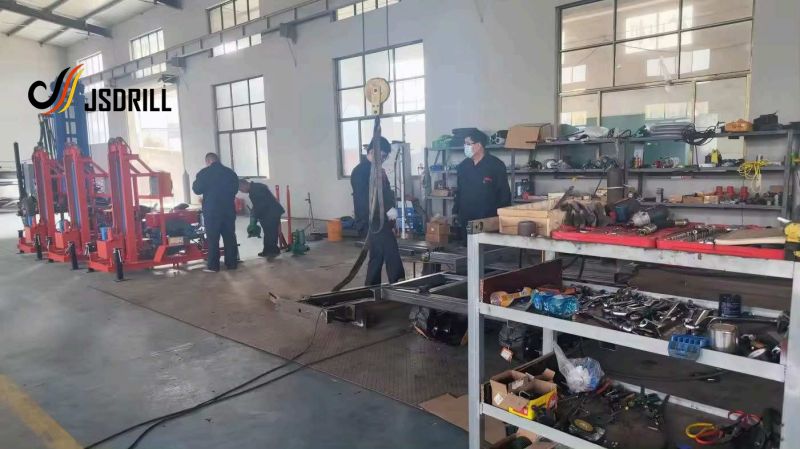

Company:

We established in 2018 and is located in shandong jining province ,enjoying convenient transportation and beautiful environment.Our company covers an area of 600 square meters and has 20 employees. We are specialized in import and export;technology import and export.Our company has rich experience in the engineering and building materials machinery industry.

There are more than 300 sales service providers in China, and the products are exported to American,Australia, Africa and Southeast Asia etc. The main brand, "JuSheng", has set up a high reputation and popularity in domestic and foreign market.

"New step, new journey" JuSheng takes a journey full of glory. The JuSheng people devote themselves into the "human drilling tools industry" with the most responsible and most loving heart.

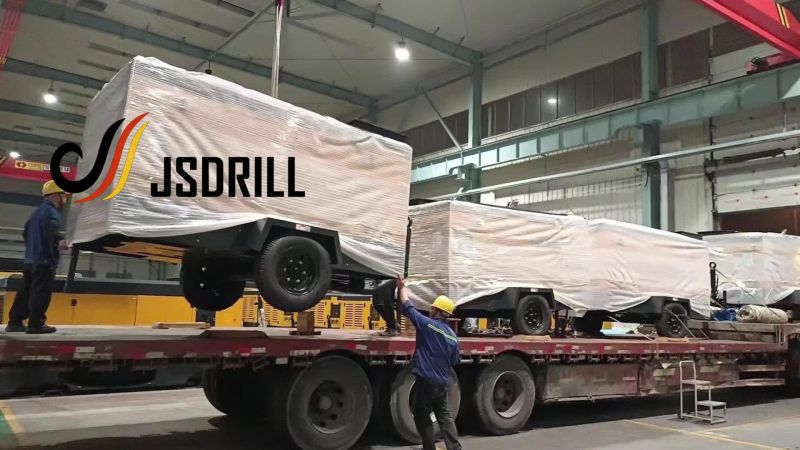

Packaging & Shipping:

Exhibition:

Exhibition

FAQ

1. what can you buy from us?

Drill Rig, DTH Bit , DTH Hammer, Shank Adapter , Drill Pipe,Air compressor

2. why should you buy from us not from other suppliers?

We has been for a long term focus on "drilling industry" solutions and research. The company recruits mining industry elite, grasping the core technology.

3. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Western Union,

Language Spoken:English,Chinese.
