37 SLeT-20

Technology features

◆Use dedicated high-pressure two-stage air end, SKF heavyduty bearing, to ensure the extra long service life of the air compressor;

◆Adopt imported filters , and enlarged separator, to ensure ultra-low water and oil content in the compressed air;

◆This series of models equipped with high performance temperature control valve effectively avoid the phenomenon of emulsification of compressor oil.

Contact Now E-Mail Telephone WhatsApp

Product Details

37 SLeT-20

37：Electric motor power 37kW

S：Screw

L：Laser

-20：Rated pressure 20bar

e：Various frequency

T：Two-stage compression

37 SLeT-20	Parameter
Electric motor power	Discharge air volume FAD	Work pressure
22-37 kW	2.2-3.7 m³/min	20 bar
Model	Electric motor power	Air discharge capacity FAD	Rated speed	Weight	Dimensions (LxWxH)	Air discharge valve size
22SLeT-20	22 kW	0.88-2.2 m³/min	2600 RPM	620 kg	1495×900 ×1240 mm	R1-1/4"
37SLeT-20	37 kW	1.48-3.7 m³/min	3000 RPM	980 kg	1735×1045×1345 mm	R1-1/2"
45SLeT-20	45 kW	2-5 m³/min	3000 RPM	1400 kg	2160×1310×1660 mm	R2"
55SLeT-20	55 kW	2.4-6 m3/min	3000 RPM	1650 kg	2160×1310×1660 mm	R2"

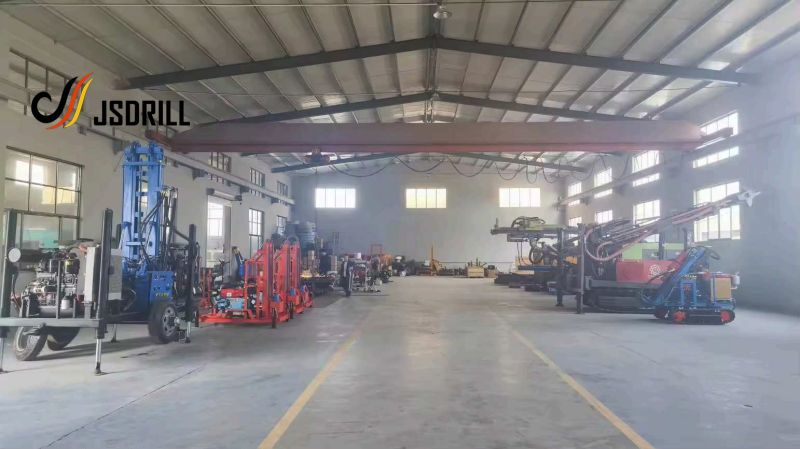

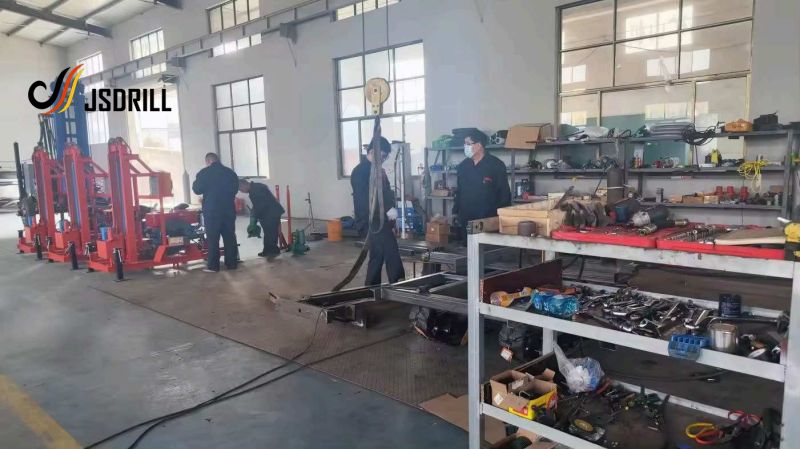

Company:

We has been for a long term focus on "drilling industry" solutions and research. The company recruits mining industry elite, grasping the core technology with a number of R & D patents. JuSheng people always insist on "change" mode, making bold innovation. It is being a top manufacturing company with a full system of research, manufacture and marketing.

The company lies in rencheng city shandong jining province ,with workshop space of 1000 m2 and more than 30 employees.The transportation is very convenient. It professionally produces various DTH hammer, DTH bit, drilling compressor, coupling sleeves,drill pipe for mining and construction. There are more than 300 sales service providers in China, and the products are exported to American,Australia, Africa and Southeast Asia etc. The main brand, "JuSheng", has set up a high reputation and popularity in domestic and foreign market.

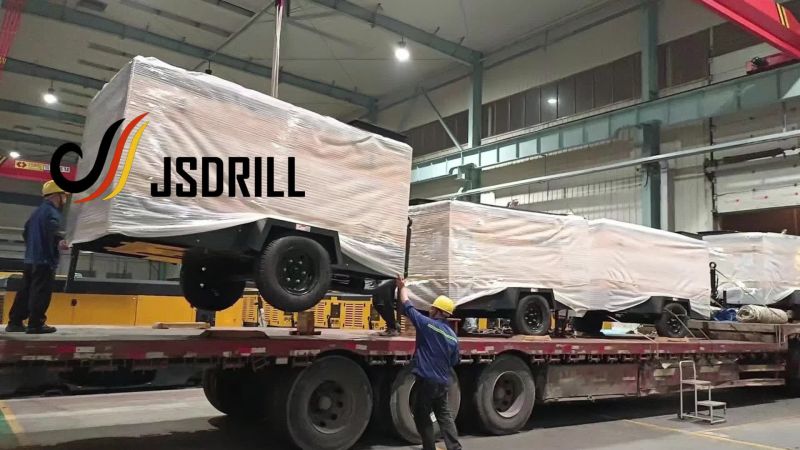

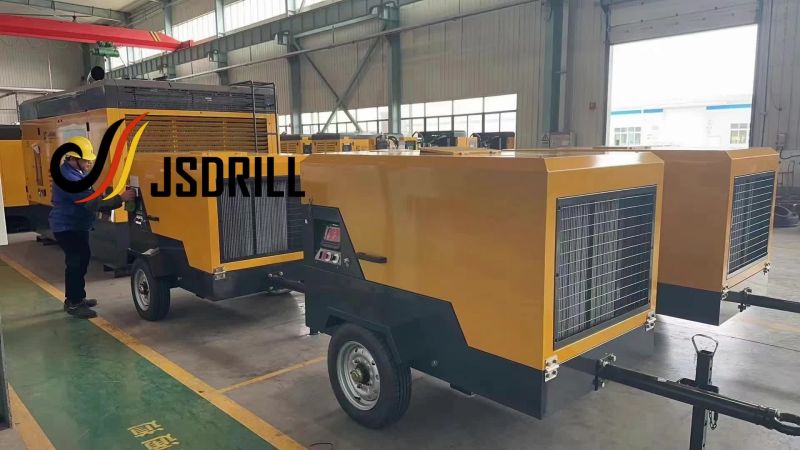

Packaging & Shipping:

Exhibition

Exhibition

FAQ:

1. who are we?

We are based in ShanDong, China, start from 2008,sell to Southeast Asia(50.00%),Domestic Market(21.00%),Western Europe(10.00%),Africa(5.00%),Mid East(5.00%),North America(2.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Oceania(1.00%),Eastern Asia(1.00%). There are total about 20-50 people in our office.

2.what can you buy from us?

Drill Rig, DTH Bit , DTH Hammer, Shank Adapter , Drill Pipe,Air compressor.

3. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Western Union,

Language Spoken:English,Chinese.
