132 SFeT-8

Technology features

◆Dual-mode frequency conversion integrated control simplifies circuits, increases the control accuracy of the cooling fan, and enables the air compressor to work smoothly in various ambient temperature environments.

◆The air intake system adopts heavy load air filter, the unique design of the intake box can filter the dust particles in the air more effectively, ensure the intake quality and extend the service life of the air compressor.

Contact Now E-Mail Telephone WhatsApp

Product Details

Dual-mode frequency conversion integrated control simplifies circuits, increases the control accuracy of the cooling fan, and enables the air compressor to work smoothly in various ambient temperature environments. The air intake system adopts heavy load air filter, the unique design of the intake box can filter the dust particles in the air more effectively, ensure the intake quality and extend the service life of the air compressor.

132 SFeT-8

132：Electric motor power 132kW

S：Screw

F：Air cool

-8：Rated pressure 8bar

e：Various frequency

T：Two-stage compression

132 SFeT-8	Parameter
Electric motor power	Discharge air volume FAD	Work pressure
22-132 kW	1.7-27.0 m³/min	8 bar
Model	Electric motor power	Air discharge capacity FAD	Rated speed	Weight	Dimensions (LxWxH)	Air discharge valve size
22SFeT-8	22 kW	1.7-4.2 m³/min	3000 RPM	620 kg	1495×900 ×1240 mm	R1-1/4"
37SFeT-8	37 kW	2.8-7.1 m³/min	3000 RPM	980 kg	1735×1045 ×1345 mm	R1-1/2"
45SFeT-8	45 kW	3.5-8.83 m³/min	3000 RPM	1400 kg	2160×1310 ×1660 mm	R2"
55SFeT-8	55 kW	4.7-11.78 m³/min	3000 RPM	1650 kg	2160×1310 ×1660 mm	R2"
75SFeT-8	75 kW	5.7-14.24 m3/min	3000 RPM	1750 kg	2160×1310 ×1660 mm	R2"
90SFeT-8	90 kW	7.24-18.1 m³/min	3000 RPM	2700 kg	2475×1650(1685) ×1965 mm	DN65
110SFeT-8	110 kW	9.5-23.8 m³/min	3000 RPM	3460 kg	2815×1825(1875) ×2185 mm	DN80
132SFeT-8	132 kW	10.8-27 m³/min	3000 RPM	3460 kg	2815×1825(1875) ×2185 mm	DN80

Company:

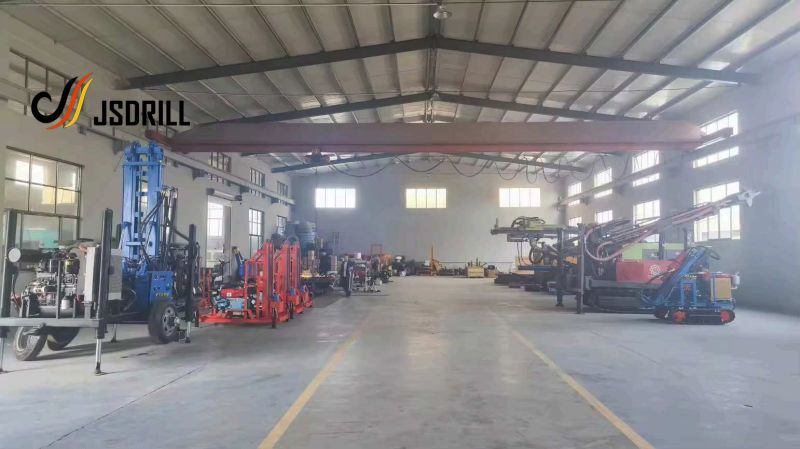

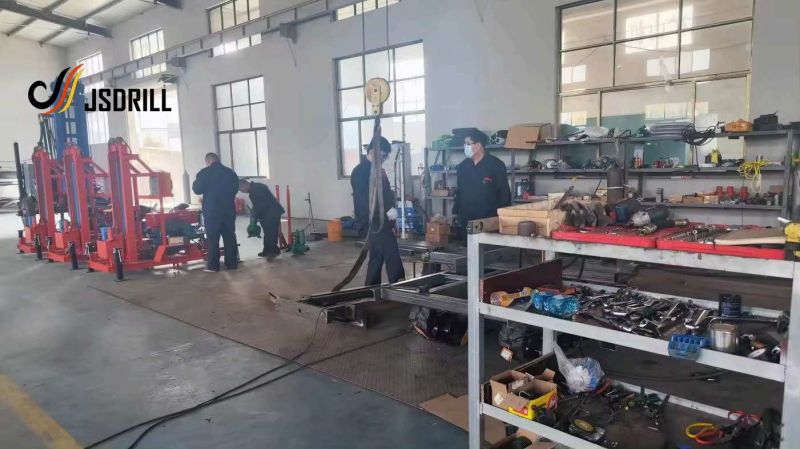

Company

The company lies in rencheng city shandong jining province ,with workshop space of 1000 m2 and more than 30 employees.The transportation is very convenient. It professionally produces various DTH hammer, DTH bit, drilling compressor, coupling sleeves,drill pipe for mining and construction. There are more than 300 sales service providers in China, and the products are exported to American,Australia, Africa and Southeast Asia etc. The main brand, "JuSheng", has set up a high reputation and popularity in domestic and foreign market.

"New step, new journey" JuSheng takes a journey full of glory. The JuSheng people devote themselves into the "human drilling tools industry" with the most responsible and most loving heart. The company will strive to improve in product cost performance, recognition ratio and comprehensive ratio, committed to the company into best intellectual property value, the most innovative ability, the most market influence,and make the new meaning for "JuSheng dream".

Packaging & Shipping:

Exhibition

FAQ

1 What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

2 What is your terms of delivery?

EXW, FOB, CFR, CIF.We have a very good cooperation in shipping logistics, and the price is low.Not only our product price is advantageous, but also our logistics price.

3 How about your delivery time?

Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. We have the goods in stock and they will be shipped from the factory within three days. We will book the warehouse after you pay the advance payment.
