55 SFeT-7

Technology features

◆ Use low speed two stage screw compressor (1500 RPM), lower noise, higher efficiency;

◆ High efficiency permanent magnet motor, whether light load or heavy load, the efficiency can be always maintained above 95%;

◆ Large heat exchange area cooler with high cooling efficiency; Adapt to wider ambient temperature and prolong life;

Contact Now E-Mail Telephone WhatsApp

Product Details

Our product has large heat exchange area cooler with high cooling efficiency and adapt to wider ambient temperature and prolong life.

55 SFeT-7

55：Electric motor power 55kW

S：Screw

F： Air cool

-7：Rated pressure 7bar

e：Various frequency

T：Two-stage compression

55 SFeT-7	Parameter
Electric motor power	Discharge air volume FAD	Work pressure
55-132 kW	4.7-27.0 m³/min	7 bar
Model	Electric motor power	Air discharge capacity FAD	Rated speed	Weight	Dimensions (LxWxH)	Air discharge valve size
55SFeT-7	55 kW	4.7-11.78 m³/min	1500 RPM	1650 kg	2160×1310 ×1660 mm	R2"
75SFeT-7	75 kW	5.7-14.24 m³/min	1500 RPM	1750 kg	2160×1310 ×1660 mm	R2"
90SFeT-7	90 kW	7.24-18.1 m³/min	1500 RPM	2700 kg	2475×1650(1685) ×1965 mm	DN65
110SFeT-7	110 kW	9.5-23.8 m³/min	1500 RPM	3460 kg	2815×1825(1875) ×2185 mm	DN80
132SFeT-7	132 kW	10.8-27 m³/min	1500 RPM	3460 kg	2815×1825(1875) ×2185 mm	DN80

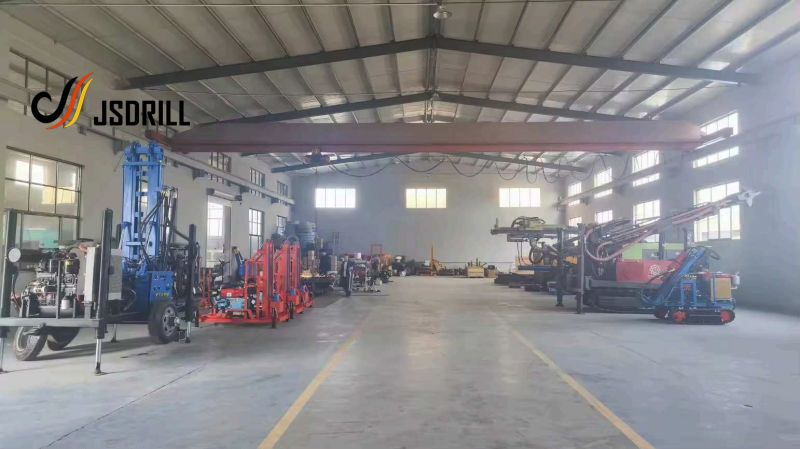

Company:

We established in 2018 and is located in shandong jining province ,enjoying convenient transportation and beautiful environment.Our company covers an area of 60 0 square meters and has 20 employees. We are specialized in import and export;technology import and export.Our company has rich experience in the engineering and building materials machinery industry.

Before the establishment of the company, we have 15 years of experience in equipment sales and service and have more than 15 years of experience in design and manufacturing , mainly producing water well drilling rigs, DTH drilling tools, and top hammer drilling tools. We can also provide OEM and ODM services for domestic and foreign customers.

At present, JS Drill has reached long-term cooperation with customers in more than 50 countries around the world. And we have a good market in 200 cities and 20 provinces around China, our products are also exported to more than 20 countries and regions all over the world.

Besides,we are making great efforts to develop new products to meet different requirements. Our company has new R&D equipment equipment to strictly control the product quality. Adhering to the business principle of mutual benefits,we have had a reliable reputation among our customers because of our professional services,quality products and competitive prices.

We warmly welcome customers from at home and abroad to cooperate with us for common success.

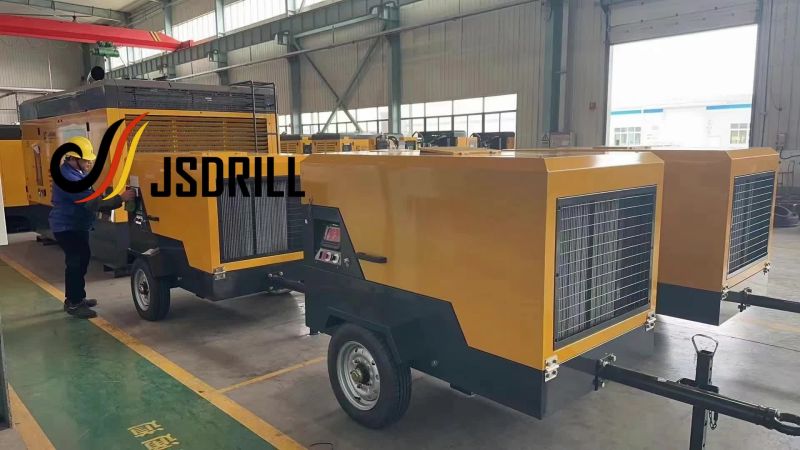

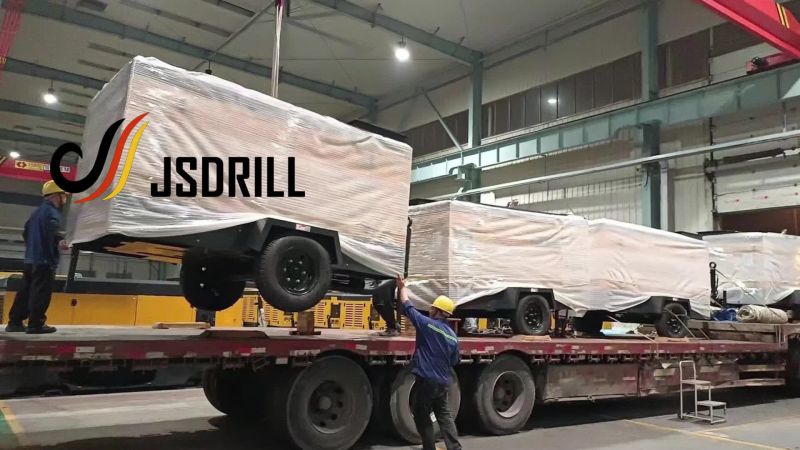

Packaging & Shipping:

Exhibition:

Exhibition

FAQ

1.What is your terms of delivery?

EXW, FOB, CFR, CIF.We have a very good cooperation in shipping logistics, and the price is low.Not only our product price is advantageous, but also our logistics price.

2 How about your delivery time?

Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. We have the goods in stock and they will be shipped from the factory within three days. We will book the warehouse after you pay the advance payment.

3 What is the warranty of our machine?

Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
